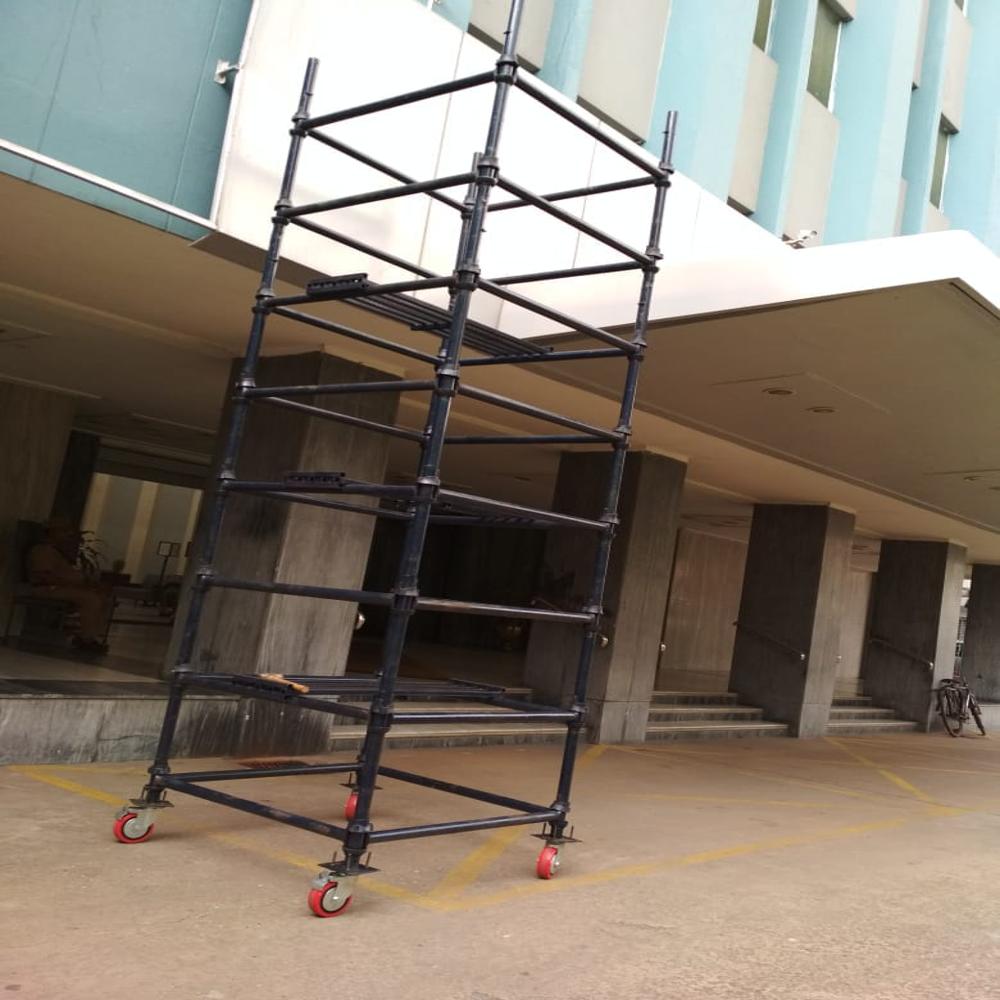

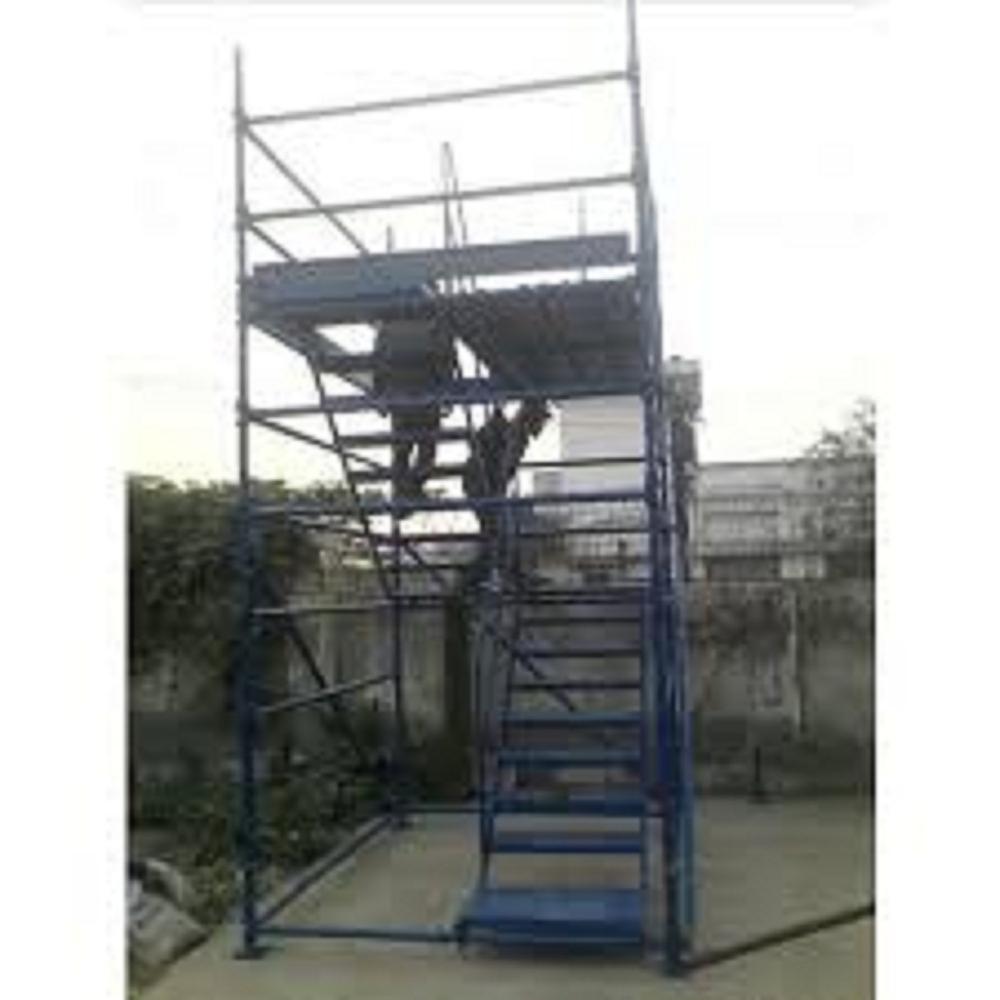

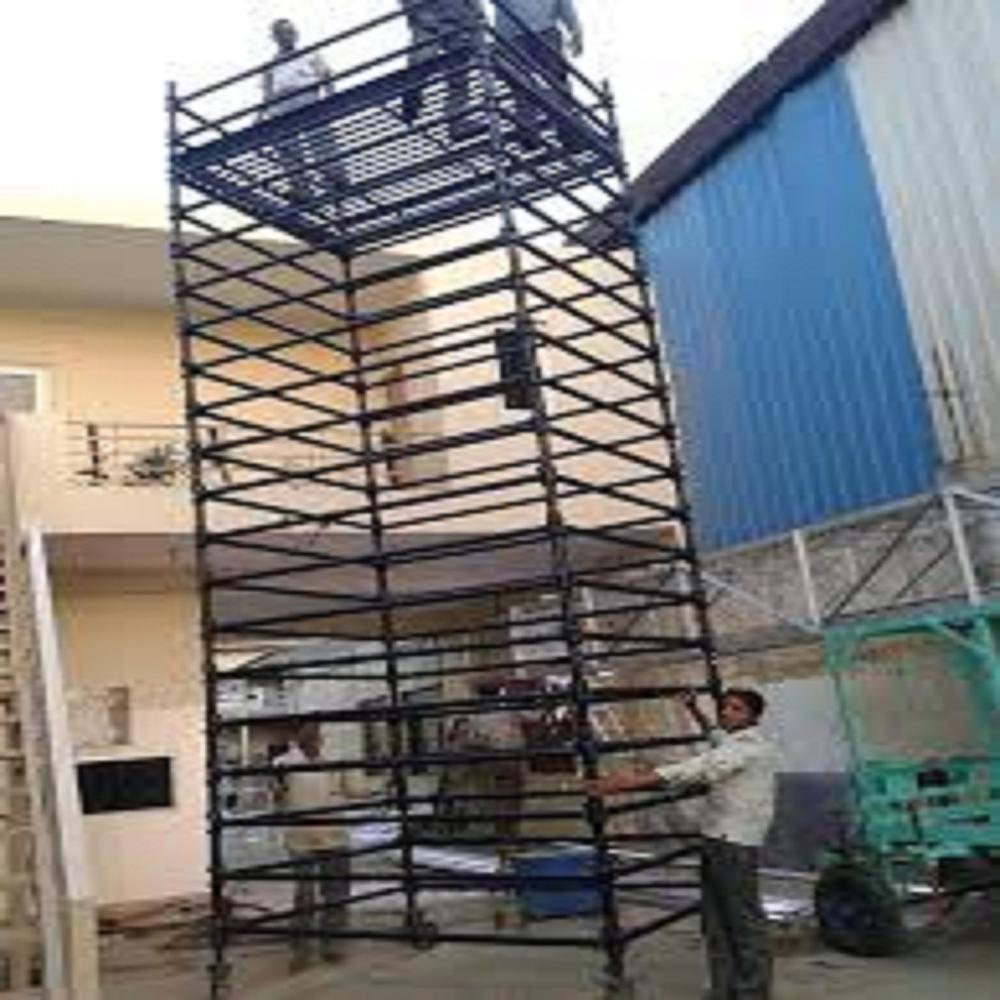

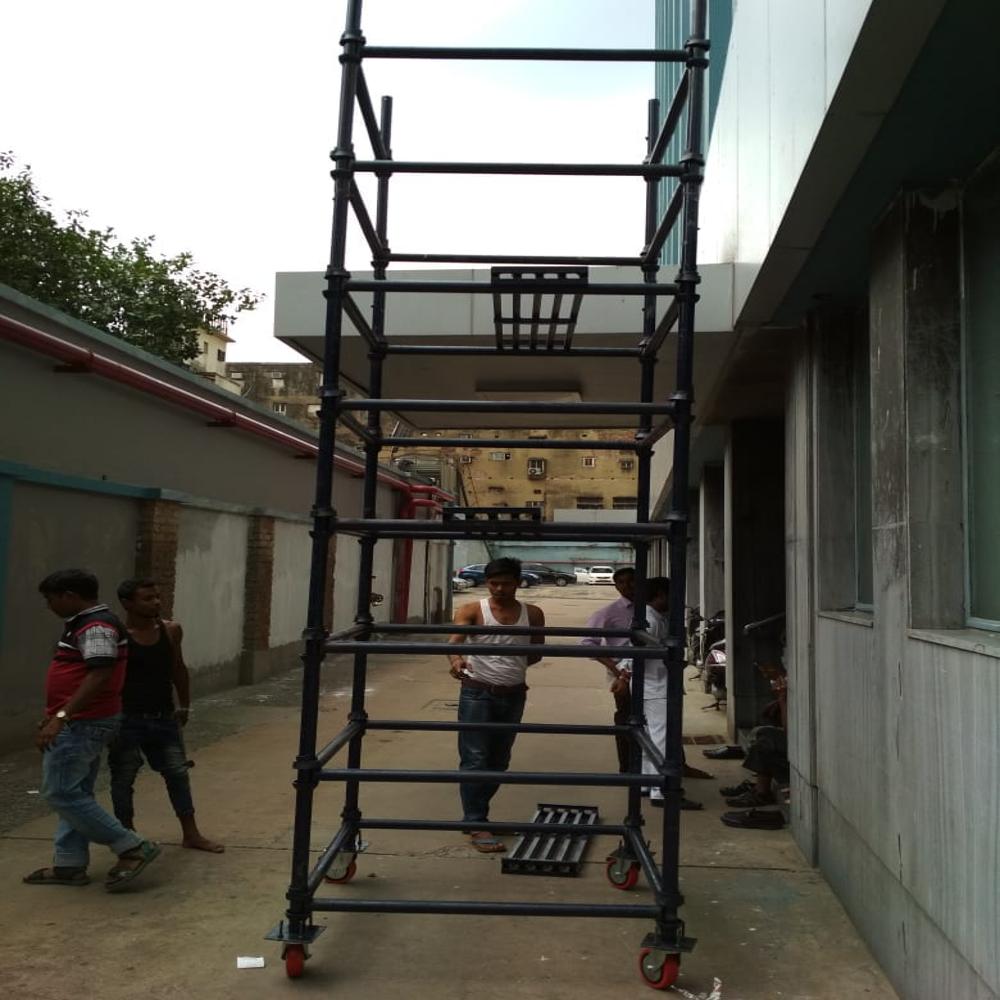

Cuplock Scaffolding

Product Description

Cuplock Scaffolding is a type of modular scaffolding system widely used in construction and industry projects. It is modular, meaning it can be adapted to fit a wide range of project requirements. The system is made up of vertical standards, horizontal ledgers, and transoms, with a unique locking mechanism that helps secure the components without the need for additional tools. It's known for its speed of assembly and versatility and suitable for both low-rise and high-rise construction projects. Cuplock Scaffolding is used for creating temporary work platforms or to access elevated areas and supports the structure while concrete is being poured.

Cuplock scaffolding is a modular system made from high tensile steel with a hot-dip galvanized finish for corrosion resistance. It features node points that allow up to four horizontal members to be connected in one locking action. The system comprises standards, ledgers, and diagonal braces, designed for high load-bearing capacity. Its unique cup and blade mechanism eliminates the need for bolts or nuts, ensuring quick erection and dismantling. Cuplock systems are compatible with different work environments and height requirements.

Cuplock scaffolding utilizes a system of high-grade steel tubes with a 48.3mm outside diameter and 3.2mm thickness, featuring fixed bottom cups and rotatable top cups for secure connections, and available in various lengths.

Uses in the Scaffolding Industry:-
